Inicio ProductosMáquina de impresión flexográficaPRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed

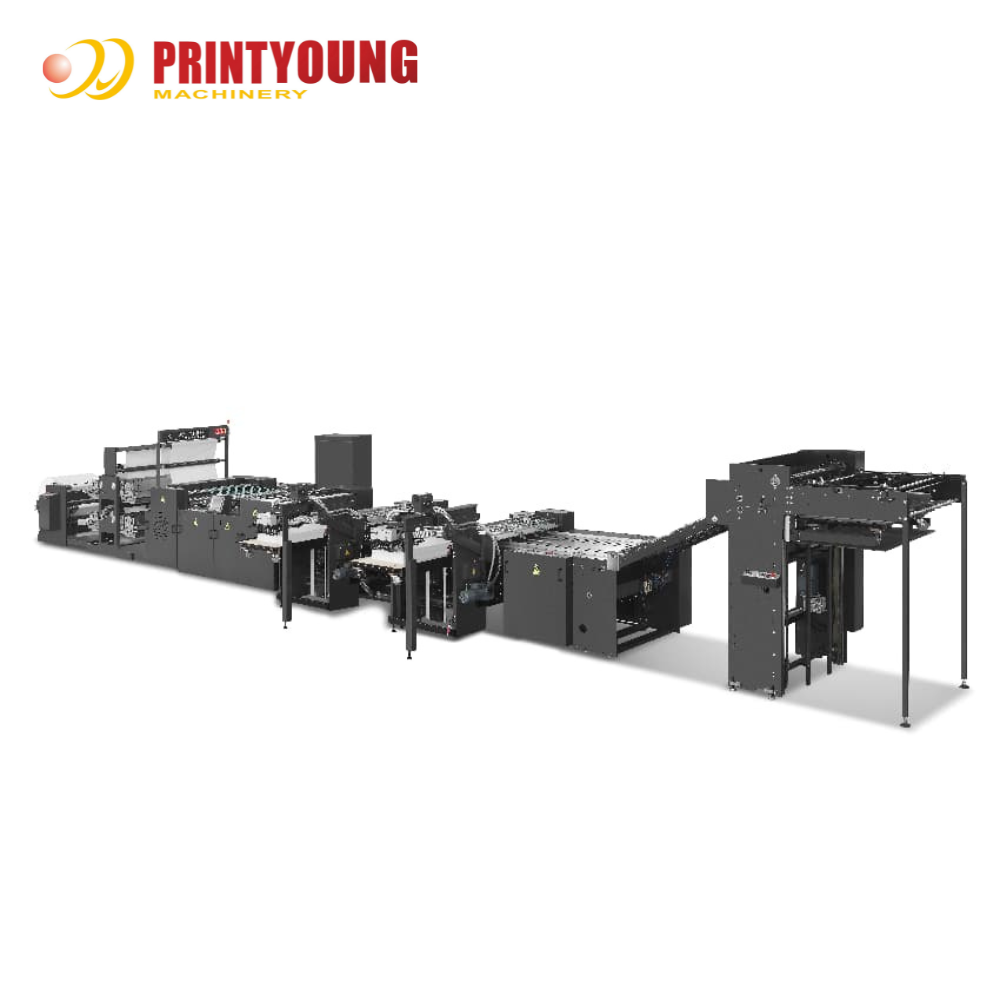

PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed

PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed
PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: PRINTYOUNG
Certificación: CE
Número de modelo: PRY-1020AFG
Cantidad de orden mínima: 1 juego
Precio: USD 100000 Set
Detalles de empaquetado: Adopta un embalaje a prueba de humedad y golpes que es adecuado para el transporte por carretera de
Tiempo de entrega: 30 DÍAS LABORALES
Condiciones de pago: LC, T/T
Capacidad de la fuente: 30 juegos por mes
Contactar ahora
El diámetro máximo del rollo: 1300 mm El ancho del papel: 680 ~ 1020 milímetros
Peso de papel aplicable: 50 ~ 130 g/m² Repetir longitud de impresión: 300 ~ 680 milímetros
Ancho máximo de impresión: 1020 mm Velocidad de impresión máxima: 300 m/min
El número máximo de copias que se emitirán: 55 copias por minuto Especificaciones de corte: 300 ~ 680 milímetros
Páginas en capas: 5 ~ 50 páginas Peso del papel de cubierta: 60 ~ 300 gramos
Resaltar:

Automatic double feeder flexo printing machine

,

High speed 2-color in-line flexo printer

,

300 M/min print speed flexo machine

PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 0
PRY-1020AFG Double Feeder Flexo Printing Machine
PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 1
Features
1.This machine employs advanced technologies including microcomputer control,
photoelectric tracking,pneumatic-liquid linkage,touchscreen human-machine interface operation,and ink-based flexographic printing.The production line features a roller paper unwinding and flattening process,double-sided dual-color flexible printing,horizontal sheet cutting,multi-page layering,vertical cutting,and platform-based paper stacking,making it an ideal mechanical solution for coil-based printing of inner core pages.
2.This operation can be performed by a single captain.
3.constituent
One set of unwinding sleeves
Double-sided two-color printing
A set of cutting sleeves
A set of paper sets (digital program control)
Two sets of suction and delivery Feeders
A set of high-income part sets
A set of electrical control system
Technical Parameters
The Maximum Diameter of the Roll
1300 mm
The Width of the Paper
680 ~ 1020 mm
Applicable Paper Weight
50 ~ 130 g/m²
Repeat Print Length
300 ~ 680 mm
Maximum Printing Width
1020 mm
Maximum Printing Speed
300 m/min
The Maximum Number of Copies to be Issued
55 copies per minute
Slitting Specifications
300 ~ 680 mm
Layered Pages
5 ~ 50 pages
Cover Paper Weight
60 ~ 300 g
Configuration

Unwinding Part

1.Quantity of roll paper: 1pc
2.Paper roll diameter: 1300mm
3.Paper roll width: 1020mm
4.Web lifting: The motor chain lifting method is adopted
5.Tension braking: Magnetic particle braking system is adopted
6.Web clamping method: Adopt air shaft type
7.Tension control system: Fully automatic,floating roller type

Printed Parts

1.Number of process color groups,4 printing color sets,cast iron wall panels,timing belt drive.
2.Manner,single-paper,double-sided,two-colored
3.Printing format: Maximum circumference: 680mm
4.Maximum width: 1020mm
5.Printing speed: Maximum printing speed: 300m/min

Cut the Part

1.Slitting knife shaft 1 set Bed knife: Holder mounting Upper knife: Rotating knife roller + knife blade

2.Traction unit 1 set The traction rollers are steel rollers

   The pressure roller is a rubber roller
   The traction rollers are clamped with cylinders
3.Slitting accuracy Cutting length tolerances +/-1mm<1000mm Slope tolerance +/-1mm/1000mm
4.Main motor
   The main motor is a 15kw AC motor installed in the slitting component

Page Count

1.Count
   Count range: 10-100 pages (5-50 sheets fold)
2.Clamp delivery
   2 sets of clamping units
   Clamp feeding drive utilizes cam curve mechanical drive
   Clamping control utilizes cam curve mechanical control
3.Transportation method
   First, use a flat belt for continuous conveying,and then use a synchronous belt for intermittent conveying

Cover

1.Adopt the Tongye SF1040 conveyor head
2.After single sheet conveying,click on the intermittent conveying page

High Yield Paper Components

Adopt belt drive to climb and collect vibration
PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 2
PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 3
PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 4
PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 5
PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 6
PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 7
PRY-1020AFG Automatic Double Feeder 2-Color In-Line Flexo Printing Machine with 300 M/min Print Speed 8
