ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine

ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: PRINTYOUNG
Certificación: CE
Número de modelo: ZX-800
Cantidad de orden mínima: 1 juego
Precio: USD 23500 Set
Tiempo de entrega: 30 DÍAS LABORALES
Condiciones de pago: LC, T/T
Capacidad de la fuente: 30 juegos por mes
Contactar ahora
Capacidad de producción: 15 ~ 20 veces/minuto Tamaño de papel: 300 * 250 mm
máx. Tamaño de caja: 250*150*100mm mín. Tamaño de caja: 90*110*23mm
Voltaje de energía eléctrica: 380V 50HZ Material adecuado: Papel recubierto de PE
Grosor del papel: 200 ~ 300 g/m² potencia total: 6 kW

ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 0

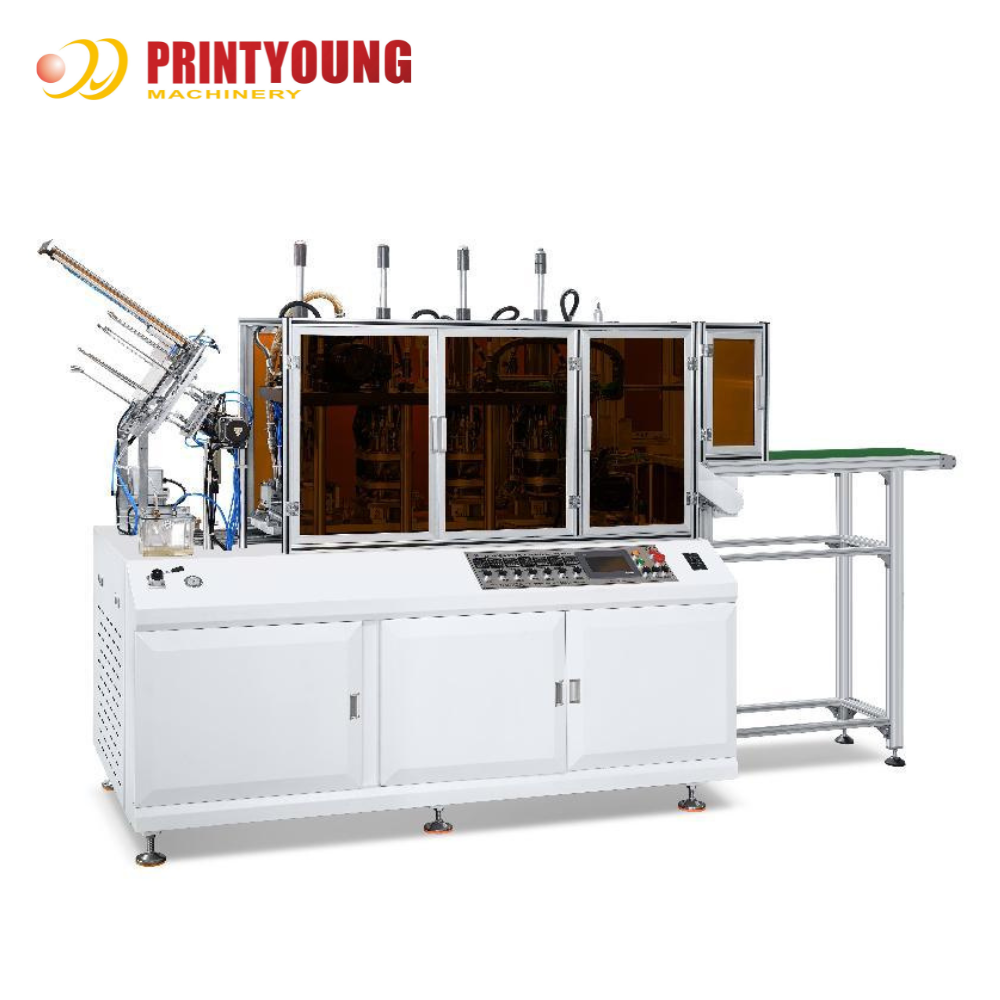

ZX-800 Automatic Square Bowl Forming Machine
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 1
Features
Automatic square bowl forming machine is a multi-station forming machine.It uses a microcomputer to control the servo system to automatically take paper,full servo forming,curling,counting and collecting continuous processes. Compared with traditional automatic paper product forming equipment,this equipment recombines the principles of pneumatic and mechanical combination,and has the advantages of higher production speed,more stable performance,safer operation,more convenient maintenance and more humanized structural design.
Technical Parameters
Type
ZX-800
Production Capacity
15 ~ 20 times/min (actual production according to product size)
Paper Size
300 * 250 mm
Max. Box Size
250 * 150 * 100 mm
Min. Box Size
90 * 110 * 23 mm
E-power Voltage
380V 50Hz (can be changed)
Suitable Material
PE coated paper
Paper Thickness
200 ~ 300 g/m²
Total Power
6 kw
Total Weight
700 kg
Overall Dimension
2100 * 750 * 1800 mm
Working Air Source
air pressure 0.2 ~ 0.3 Mpa (need to buy compressor)
Applications
It is a paper container forming equipment for producing coated paper trays,square paper bowls,square paper cups,square paper trays and so on.
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 2
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 3
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 4
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 5
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 6
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 7
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 8
ZX-800 Full Servo Motor System PLC Controlled Bearing & Gearbox Automatic Square Paper Bowl Forming Machine with Pump & Engine 9
