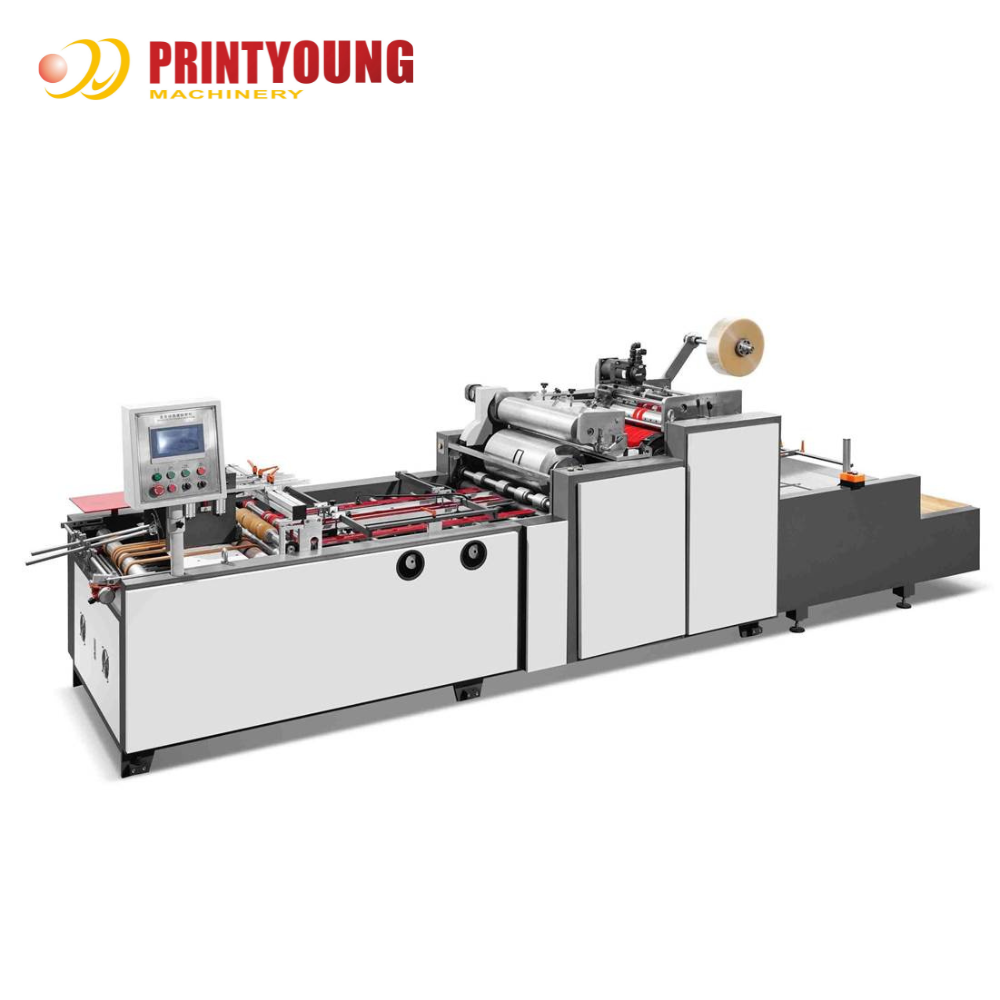

TC-650S Fully Automatic Paper Box Window Patching Machine

TC-650S Fully Automatic Paper Box Window Patching Machine
TC-650S Fully Automatic Paper Box Window Patching Machine TC-650S Fully Automatic Paper Box Window Patching Machine TC-650S Fully Automatic Paper Box Window Patching Machine TC-650S Fully Automatic Paper Box Window Patching Machine TC-650S Fully Automatic Paper Box Window Patching Machine
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: PRINTYOUNG
Certificación: CE
Número de modelo: TC-650S
Cantidad de orden mínima: 1 juego
Precio: USD 22000 Set
Tiempo de entrega: 25 días laborables
Condiciones de pago: LC, T/T
Capacidad de la fuente: 30 juegos por mes
Contactar ahora
Máx. Tamaño del papel: 560*650 milímetros Mín. Tamaño del papel: 150*160mm
Tamaño máximo de la ventana: 300*350 milímetros Tamaño mínimo de la ventana: 30*50mm
Espesor de la película: 0,03 ~ 0,25 mm (PVC), 0,03 ~ 0,20 mm (PET) Exactitud: ± 1,0 mm
Peso del papel: 200 ~ 1000 g/㎡ Velocidad: 25000 unidades/h

TC-650S Fully Automatic Paper Box Window Patching Machine 0
TC-650S Window Patching Machine
TC-650S Fully Automatic Paper Box Window Patching Machine 1
Features
With its exceptionally ergonomic design philosophy,this machine delivers high efficiency, precision,stability,and user-friendly operation.It is compatible with both cardboard and corrugated paper,utilizing a non-stop bottom-feeding system that individually separates sheets from the paper stack.Through processes including push-chain positioning, flexographic glue application,and stable,precise film cutting and cross-cutting,it achieves seamless film lamination for windows on various packaging such as tissue boxes,gift boxes, toy boxes,shirt packaging,and so on.

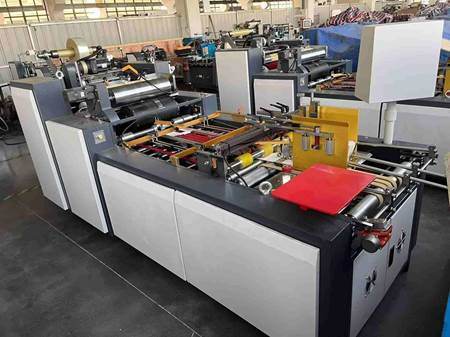

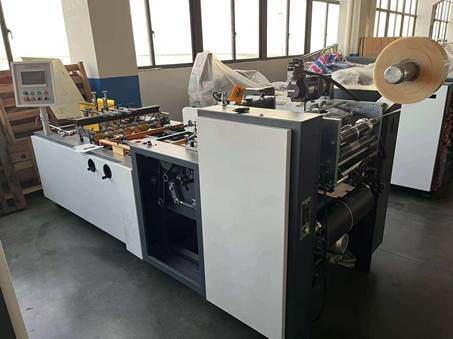

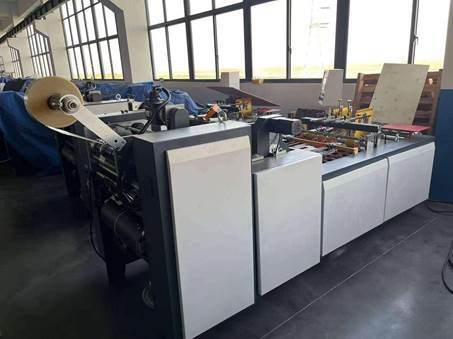

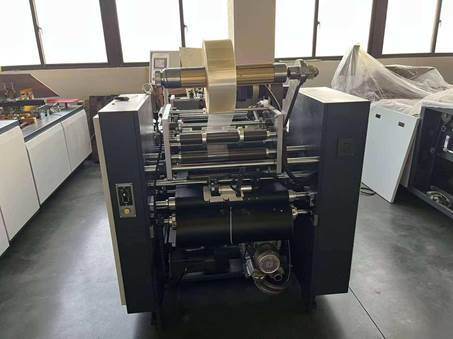

Machine Picture
TC-650S Fully Automatic Paper Box Window Patching Machine 2TC-650S Fully Automatic Paper Box Window Patching Machine 3TC-650S Fully Automatic Paper Box Window Patching Machine 4TC-650S Fully Automatic Paper Box Window Patching Machine 5
TC-650S Fully Automatic Paper Box Window Patching Machine 6TC-650S Fully Automatic Paper Box Window Patching Machine 7TC-650S Fully Automatic Paper Box Window Patching Machine 8TC-650S Fully Automatic Paper Box Window Patching Machine 9
Technical Parameters
Model
TC-650S
Max. Paper Size
560 * 650 mm
Min. Paper Size
150 * 160 mm
Max. Window Size
300 * 350 mm
Min. Window Size
30 * 50 mm
Film Thickness
0.03 ~ 0.25 mm (PVC) , 0.03 ~ 0.20 mm (PET)
Accuracy
± 1.0 mm
Paper Wegiht
200 ~ 1000 g/㎡
Speed
25000 pcs/h
Power
6.4 kw
Machine Weight
1735 kg
Machine Size
5120 * 1420 * 1550 mm
TC-650S Fully Automatic Paper Box Window Patching Machine 10TC-650S Fully Automatic Paper Box Window Patching Machine 11
Applications
Fully automatic window patching machine is a specialized equipment designed for laminating film onto windowed gift boxes,color cartons,and other packaging products.It represents the most advanced model of window patching machines currently available in the domestic market.
TC-650S Fully Automatic Paper Box Window Patching Machine 12TC-650S Fully Automatic Paper Box Window Patching Machine 13TC-650S Fully Automatic Paper Box Window Patching Machine 14TC-650S Fully Automatic Paper Box Window Patching Machine 15
TC-650S Fully Automatic Paper Box Window Patching Machine 16
TC-650S Fully Automatic Paper Box Window Patching Machine 17
TC-650S Fully Automatic Paper Box Window Patching Machine 18
TC-650S Fully Automatic Paper Box Window Patching Machine 19
TC-650S Fully Automatic Paper Box Window Patching Machine 20
TC-650S Fully Automatic Paper Box Window Patching Machine 21
TC-650S Fully Automatic Paper Box Window Patching Machine 22
