Inicio ProductosMaquinaria de proceso de papelCG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)

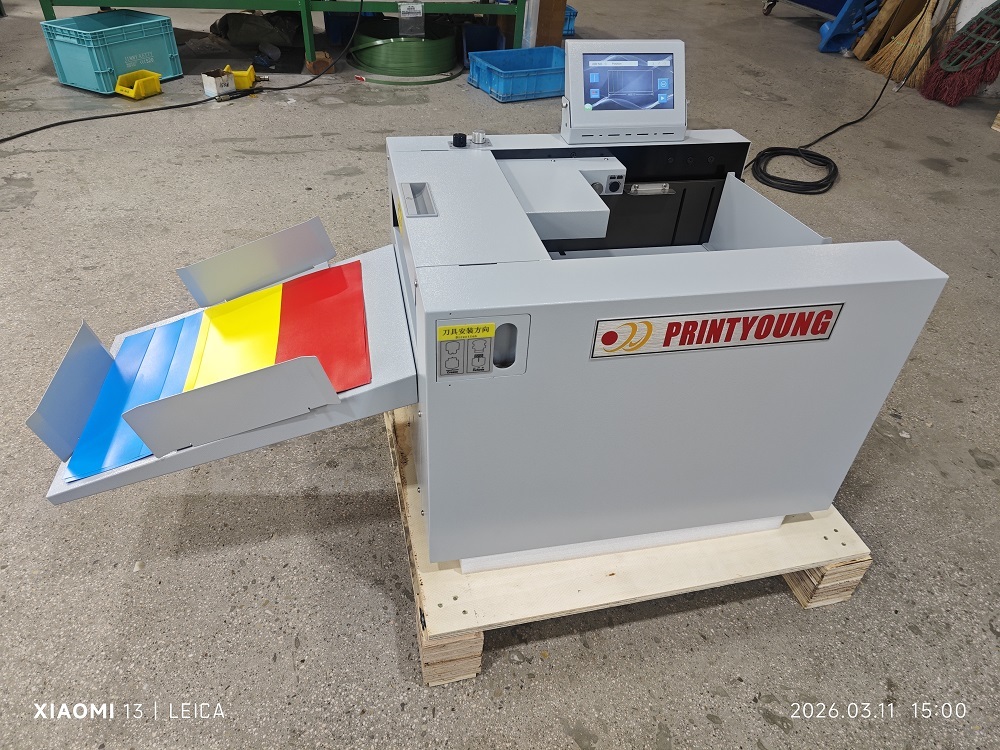

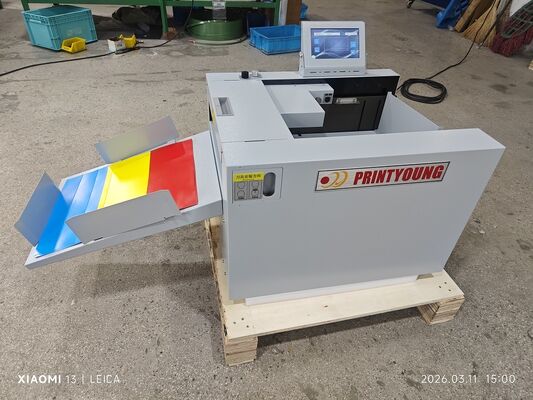

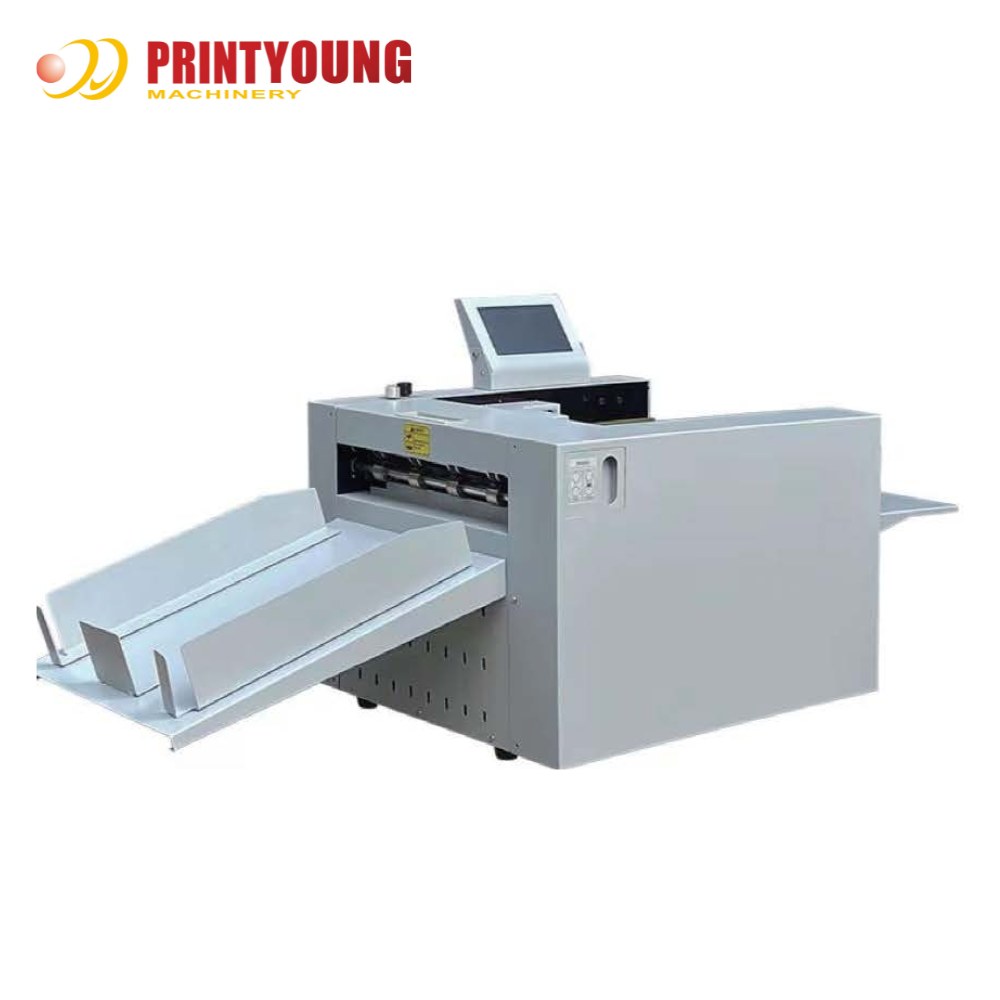

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: PRINTYOUNG
Certificación: CE
Número de modelo: CG-338
Cantidad de orden mínima: 1 juego
Precio: USD 1200 Set
Tiempo de entrega: 30 DÍAS LABORALES
Condiciones de pago: LC, T/T
Capacidad de la fuente: 30 juegos por mes
Contactar ahora
Máx. Tamaño del papel: 330 * 3000 milímetros Grosor creciente: 80～400 gramos
Grosor de la línea discontinua: 80～250 gramos Aumento del almacenamiento de datos: 32 grupos de una sola hoja
Número creciente: hasta 32 piezas Precisión creciente: ± 0.1 mm
Velocidad de sangría (sangría A4): 4500/h Modo de alimentación de papel: alimentación por succión

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 0
CG-338 Automatic Suction Paper Creasing Machine
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 1
Features
1. This machine uses industrial polyurethane cushion,which makes the indentation action more stable and the indentation line clearer.
2. The unique concave-convex indentation groove design can effectively change the direction of paper fiber and make the indentation line fuller.
3. The indentation strip adopts 6-series Al-mg-Sialloy,and the hardness reaches HB90-100after aging treatment. The knife blade is not deformed and the indentation effect is not out of shape for 3 million times of enterprise fatigue test.
4. It is the first to develop and use AC motor as the main motor in the market so that the mechanical performance of the mainframe does not decline and is stable fora long time.
5. Class2 PCB process and system self-checking and self-correcting process make the indentation accurate and stable!
6. Polyurethane knife gaskef for tooth line blade imported from Japan makes the sawtooth line uniform,uniform,easy to tear and break.
Technical Parameters
Model
CG-338
Max. Paper Size
330 * 3000 mm
Increasing Thickness
80～400 g
Dashed Line Thickness
80～250 g
Increasing Data Storage
32 groups of single sheet
Increasing Number
up to 32 pieces
Increasing Accuracy
± 0.1 mm
Indentation Speed(A4 Indentation)
4500/h
Paper Feeding Mode
suction feeding
Operation Interface
button touch screen
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 2
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 3
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 4
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 5
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 6
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 7
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 8
