RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width

Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: PRINTYOUNG
Certificación: CE
Número de modelo: RD-V370FS
Cantidad de orden mínima: 1 juego
Precio: USD 450 Set
Tiempo de entrega: 15 días laborables
Condiciones de pago: LC, T/T
Modo de trabajo: montaje en frío, un lado, dos lados Modo de calefacción: Rollo de acero
Diámetro de rollo: 79 mm Temperatura de recubrimiento: 70 ~ 110 ℃
Espesor de la película: 80 ~ 350 gramos Diámetro del núcleo de la membrana: 1 pulgada / 3 pulgadas
Tiempo de calefacción: 5 ~ 10 minutos Velocidad de cobertura de película: 1 ~ 3 m/min
Ancho máximo de la película: 340 milímetros Modo de visualización: Pantalla digital

RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width 0

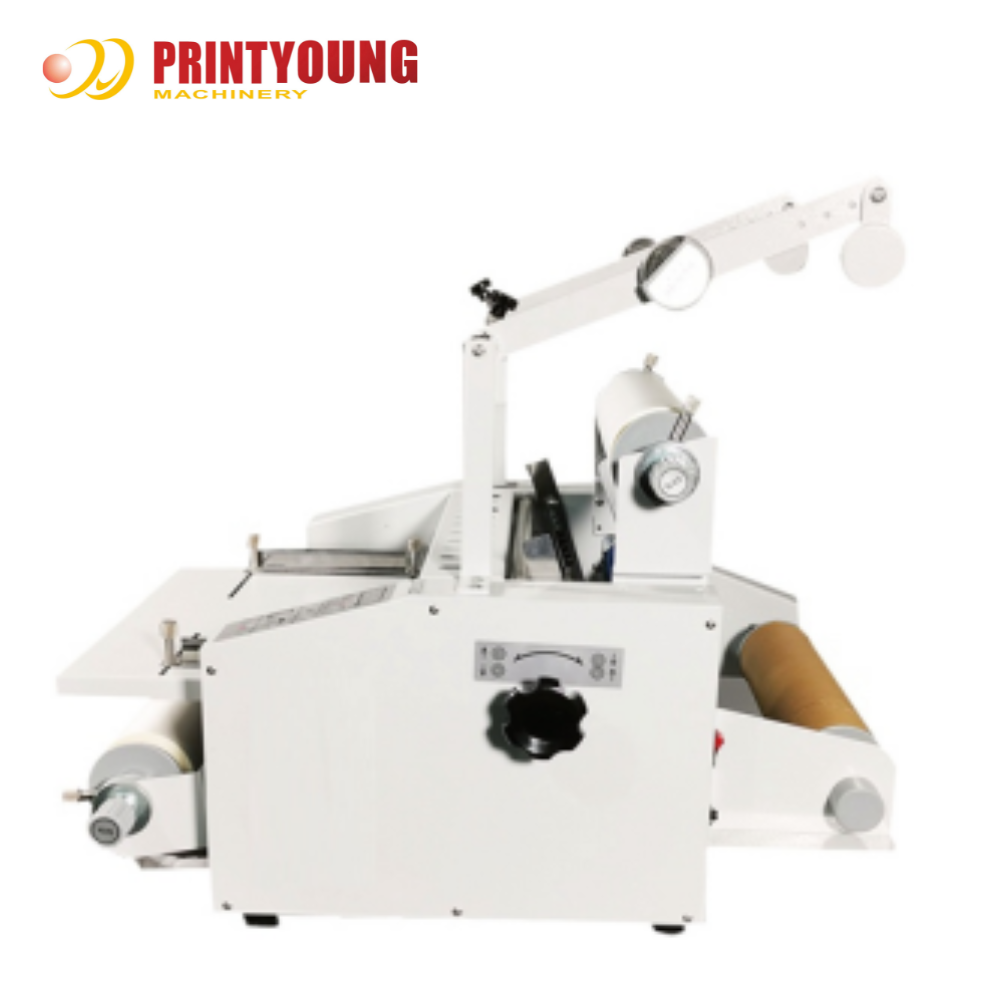

RD-V370FS Intelligent Laminating Machine
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width 1RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width 2RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width 3
Technical Parameters
Work Mode
cold mounting , single side , double side
Heating Mode
steell roll
Roll Diameter
79 mm
Coating Temperature
70 ~ 110 ℃
Film Thickness
80 ~ 350 g
Membrane Core Diameter
1in / 3in
Heating Time
5 ~ 10 min
Film Covering Speed
1 ~ 3 m/min(1 ~ 9 speed opition)
Max. Film Width
340 mm
Display Mode
digital display
Control Mode
key temperature control
Pressurization Mode
pull the pressurized spring
Paper Feed Mode
manual
Automatic Paper Collection Function
automatic winding structure
Automatic Tension Function
no
Dashed Line Function
perforating knife
Crimp Prevention Function
gravity stretch anti-crimp design
Trimming Function
automatic trimming
Electric Current
5.5 A
Voltage
220V
HZ
50 Hz
Humidity
20% ~ 70%
Net Weight
42 kg
Gross Weight
48 kg
Packing Dimension
670 * 640 * 410 mm
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width 4
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width 5
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width 6
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width 7
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width 8
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width 9
RD-V370FS Intelligent Computerized Paper Film Laminating Machine with Motor 110V/220V 1-3m/min 340mm Max Width 10
