| Lugar de origen: | Porcelana |
|---|---|
| Nombre de la marca: | PRINTYOUNG |
| Certificación: | CE |
| Número de modelo: | PRY-390D 520D 650D |
| Cantidad de orden mínima: | 1 juego |
| Precio: | USD 900 ~ 1500 Sets |
| Tiempo de entrega: | 30 días de trabajo |
| Condiciones de pago: | LC, T/T |
| Capacidad de la fuente: | 30 conjuntos por mes |
| Ancho máximo de laminación: | 370 mm 500 mm 650 mm | Velocidad de funcionamiento: | 13 metros/minuto |
|---|---|---|---|
| Espesor de papel: | 125 ~ 350 gsm | Temperatura que lamina: | 90 ~ 110 grados (normal) |
| poder total: | 2000 W | Rollo de calefacción superior: | Rollo de acero (norma) |
| Rollo de calefacción inferior: | Rollo de goma | Panel de control: | Sistema de LED digital |

|

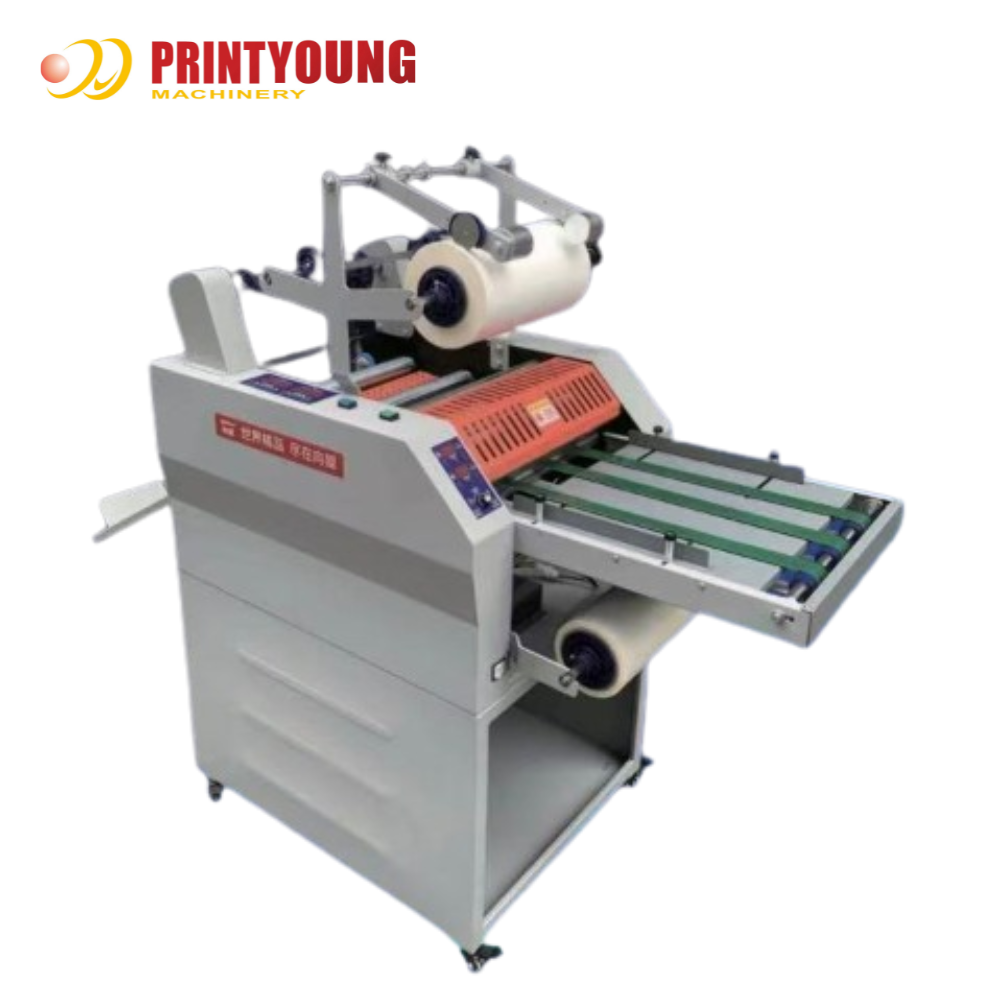

PRY-390D Film Laminator
|
|||
|
Max. Laminating Width
|
370 mm
|
500 mm | 650 mm |
|
Operating Speed
|
13 meters/minute
|
||
|
Paper Thickness
|
125 ~ 350 gsm
|
||
|
Laminating Temperature
|
90 ~ 110 degree (normal)
|
||
|
Total Power
|
2000 W
|
||
|
Temperature Control
|
upper / lower temperature are controlled separately
|
||
|
Upper Heating Roll
|
steel roll (standard)
|
||
|
Lower Heating Roll
|
rubber roll
|
||
|
Control Panel
|
digital LED system
|
||
|
Feeding Mode
|
manual
|
||
|
Overlap
|
yes
|
||
|
Auto Bursting
|
yes
|
||
|
Optional
|
two sides lamination with auto cut function (can be option in future)
|
||
|
Slitting Function
|
yes
|
||
|
Anti-curling Function
|
yes
|
||
|
Conveyor Belt Number
|
3
|
4 | 5 |
|
Optional
|
lower / upper rewinder (must appoint when order)
|
||
|
Machine Size
|
150 * 60 * 126 cm
|
150 * 73 * 126 cm | 150 * 88 * 126 cm |
|
Option
|
compressor
|
||
