Name: PRY-900 Automatic Water Base Varnishing Spot UV IR Coating Machine Electric Manufacturing Plant Provided 6 KW UV Lamp 1 Pc 220 V
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: El PRY-900
Price: 8000 USD
Availability: InStock

PRY-900 Automatic Water Base Varnishing Spot UV IR Coating Machine Electric Manufacturing Plant Provided 6 KW UV Lamp 1 Pc 220 V

Informacion basica

Lugar de origen:	Porcelana
Nombre de la marca:	PRINTYOUNG
Certificación:	CE
Número de modelo:	El PRY-900

Cantidad de orden mínima:	1 juego
Precio:	USD 8000 Set
Tiempo de entrega:	30 DÍAS LABORALES
Condiciones de pago:	LC, T/T
Capacidad de la fuente:	30 juegos por mes

Contactar ahora

Ancho de recubrimiento:

900 milímetros

Espesor del revestimiento:

180g ~ 400g

Fuerza:

6 kW

Tamaño de la máquina:

2900 * 1350 * 1220 milímetros

Velocidad media:

0 ~ 20 m/min

Potencia de la lámpara UV:

9000W (2 lámparas)

Duración de la lámpara UV:

1500H

rodillos de revestimiento:

Gel de sílice

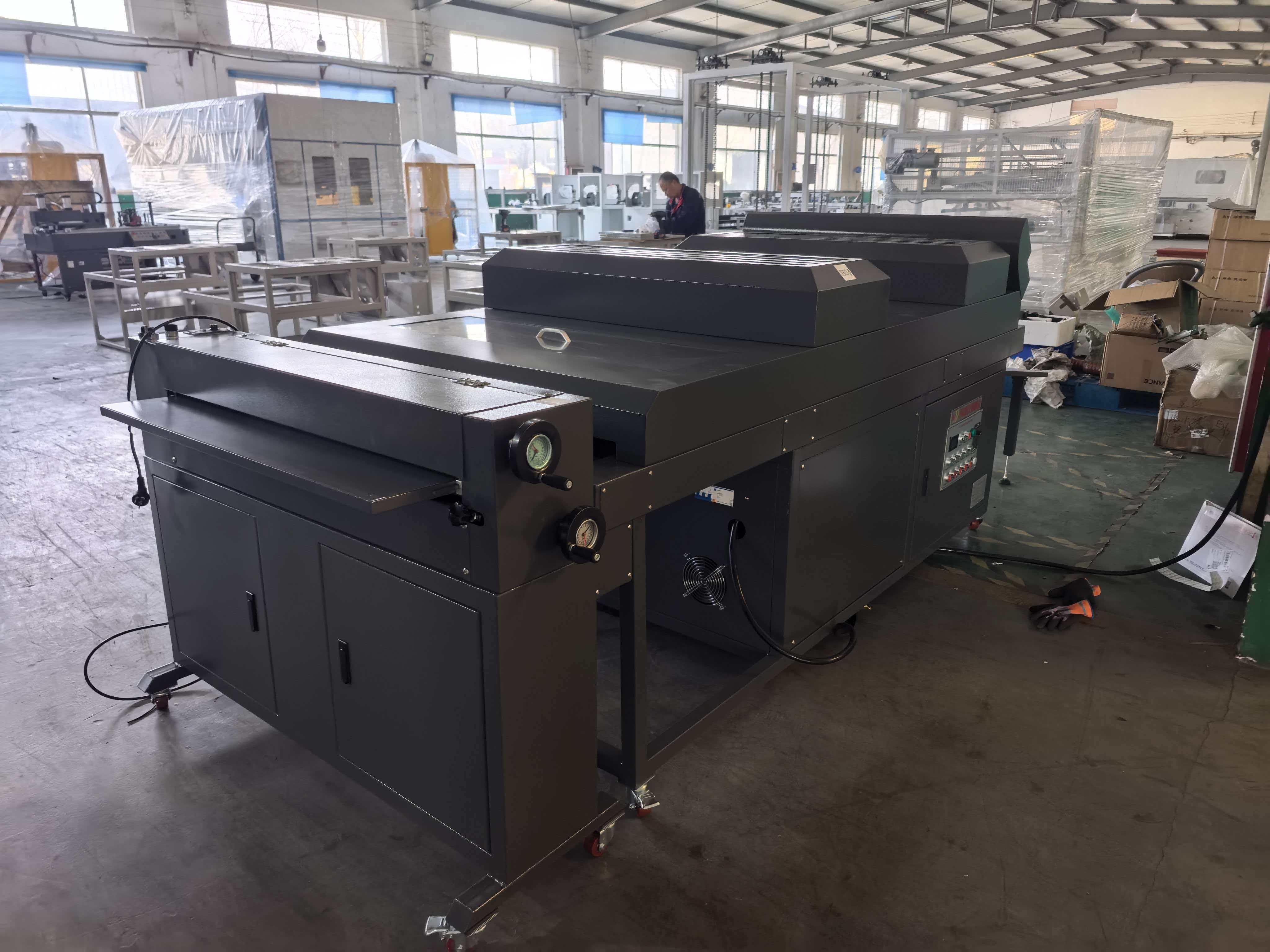

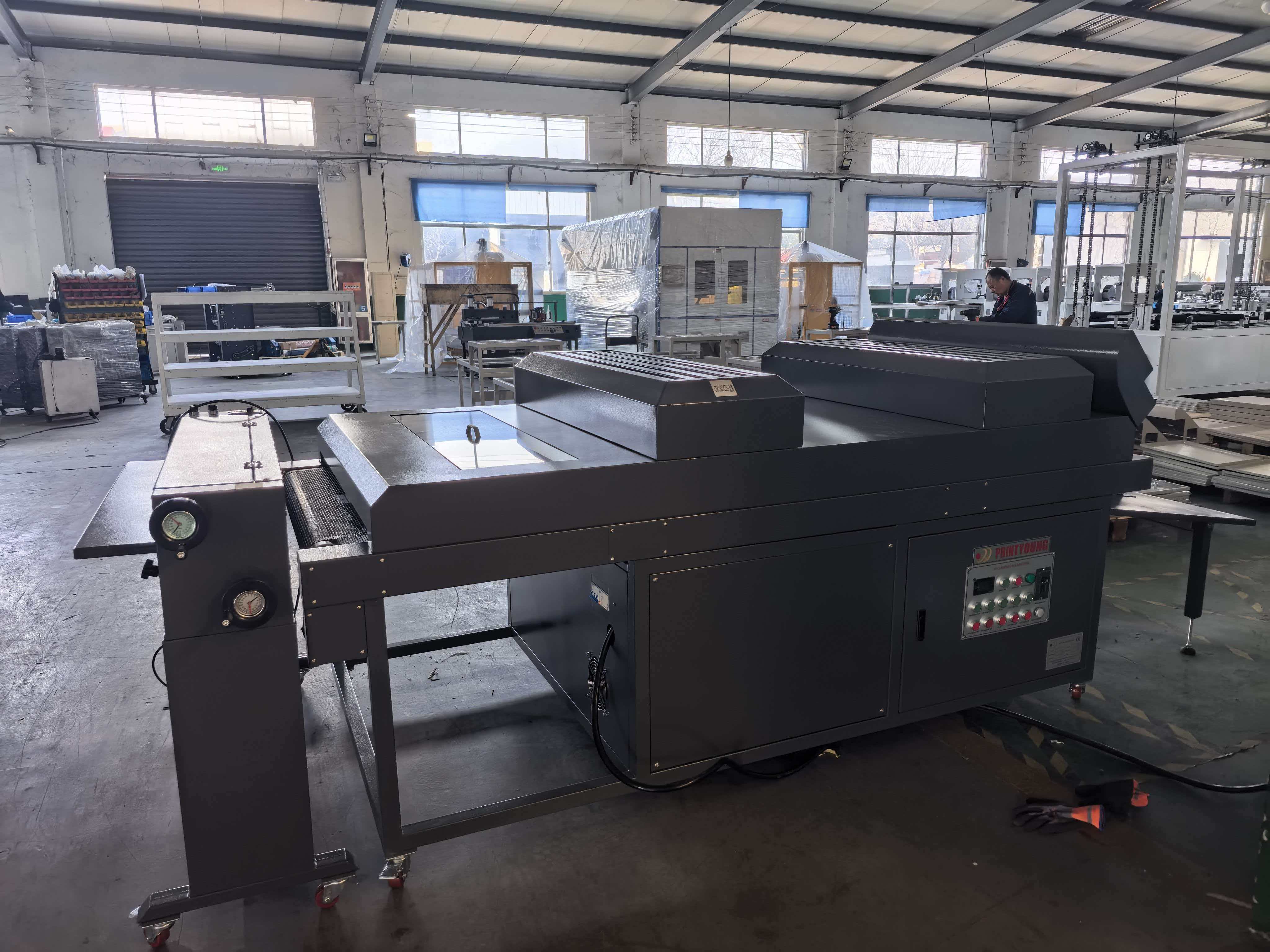

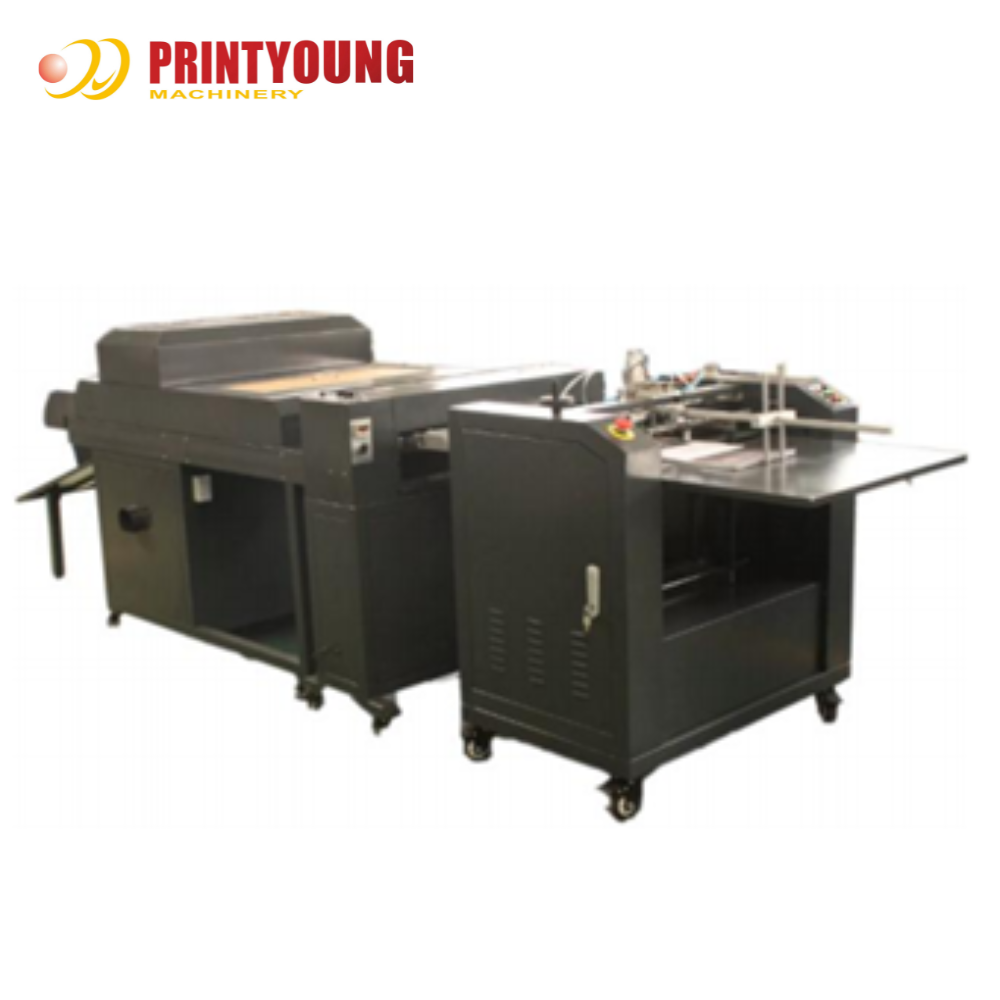

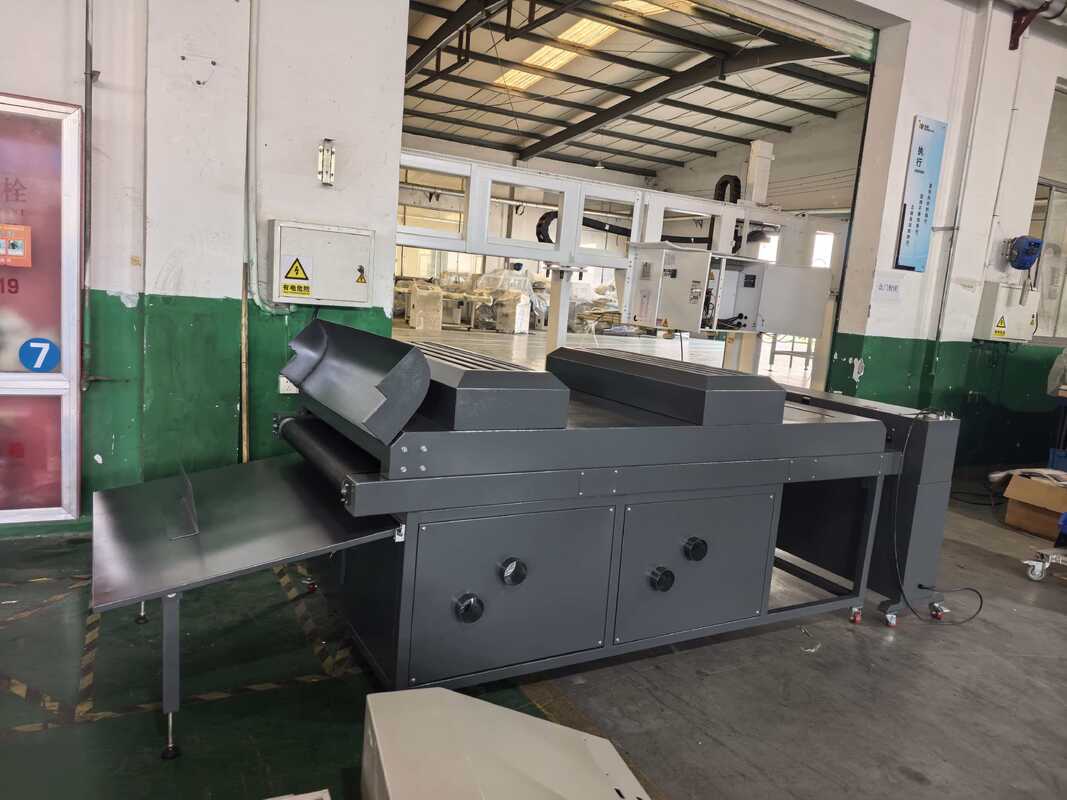

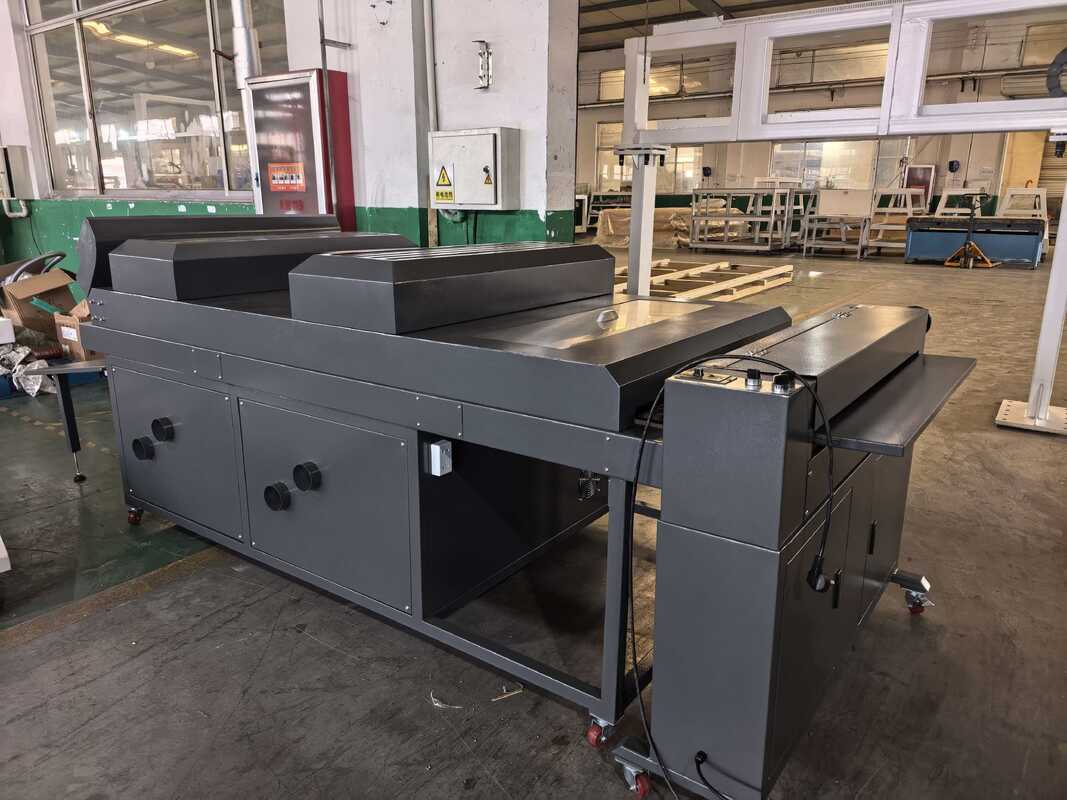

PRY-900 Automatic UV Coating Machine

Features

3 In 1,Can be used as paper feeder,UV coating and UV curing machine.
Easy to operate,fool operation without setting;
High effective,high speed can save one labour;
Low air pressure,200L/min;
Automatic feeding paper with a high pile up to 40cm;
Automatic cleaning system with two pump,one is for UV liquid,one is for alcohol cleaning;
Air knife to allow thin paper coated without curving;
Sensor for automatic stop roller if the paper go with roller;
Corona,stacker optional,Texture rollers opitional.

Performance And Characteristics:
This machineis an effective solution for sheet –fed UV coating,it can realize glossy or matte UV coating work automatically.Widely used in digital photographic,wedding photo studio, digital printing,packaging film and other industries.Solve the problems of high cost,waste of time,high error rate and easy falling off caused by traditional cold laminating.The coating effect is high clarity,high luster,environmental friendly,good toughness,waterproof,dust proof,no deformation and no foaming,low cost(only 0.02 USD/square meter),and the working efficiency is high.With working on UV coating machine for 20 years.Our machine is mature by constantly upgrading.And it has advanced technology by many years South Korean OEM Experiences.

Technical Parameters

PRY-900 Automatic UV Coating Machine
Coating Width	900 mm
Coating Thickness	180g ~ 400g
Power	6 kw
Machine Size	2900 * 1350 * 1220 mm
Motor	220V adjustable motor
Average Speed	0 ~ 20 m/min
Model of Operation	electric
Voltage	220 V
UV Lamp Power	9000W (2 lamps)
UV Lamp Life	1500 H
Coating Roller	silica gel
Scraper	stainless blade
Net Weight	495 kgs
Gross Weight	535 kgs
Packing	standard plywood case
Packing Size	1400 * 3000 * 1320 mm

Advantage

*No Big Money for automation!
*Proper Speed,High Productivity
*Compact Size,Space Saving
*Low Energy Consuming,(Air Power..)
*Low Consumable Price

Configuration

Feeder Coating Head and Curing Unit

Paper Fed 0 Error
Accurate strong pressure supply design assures that there is not fall when transmitting the paper.

One Button Control
Easy & Safe operation
One button control realized by high sophistic system design,operating more easily

Paper Count
Recording function,Paper count device shows the quantity of coated paper clearly. helps to know the process of work

Rectification Belt
Automatic rectification of the belt makes the mesh belt run smoothly and avoid deviation.
